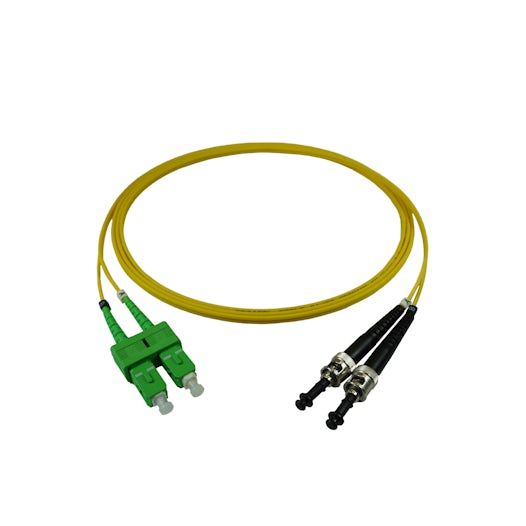

FO duplex patch cord SCD/APC - ST/PC
E9/125 G.652.D BLO, Duplex Fig. 8 (B2ca)
image similar
Product variants & stock
Download
| Article No. | Stock | Product | Length (m) | Packing unit |
|---|---|---|---|---|
| 42271108BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 1 | 1 pc. | |
| 42271208BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 2 | 1 pc. | |
| 42271308BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 3 | 1 pc. | |
| 42271408BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 4 | 1 pc. | |
| 42271508BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 5 | 1 pc. | |
| 42271608BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 6 | 1 pc. | |
| 42271708BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 7 | 1 pc. | |
| 42271808BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 8 | 1 pc. | |
| 42271908BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 9 | 1 pc. | |
| 42272008BY | FO duplex patch cord SCD/APC - ST/PC, E9/125 G.652.D BLO | 10 | 1 pc. |
Technical specifications
Datwyler offers a broad range of terminated connectors for individual customer needs.
A cable with Euroclass B2ca-s2,d0,a1 is used for the assembly.
A cable with Euroclass B2ca-s2,d0,a1 is used for the assembly.
| Cable raw material | FO Indoor Duplex Figure 8 / I-V(ZN)H, B2ca-s2,d0,a1 |
|---|---|
| Operating temperature | -10 °C - +60 °C |
| Lifetime | 1000 connections with stable attenuation values |
|---|---|
| Reproducibility of the IL | a maximum of +/- 0.1dB |
| Fibre type | E9/125 G.652.D BLO |
| Ferrule material | Zirconia |
| Connector type side A | SCD/APC |
| IL maximal, connector A | 0.25 dB |
| IL typical, connector A | 0.12 dB |
| RL minimal, connector A | 65 dB |
| RL typical, connector A | 70 dB |
| Grade IEC61755, connector A (better than) | B1 |
| Standard connector A | IEC 61754-4 |
| Connector type side B | ST/PC |
| IL maximal, connector B | 0.25 dB |
| IL typical, connector B | 0.12 dB |
| RL minimal, connector B | 50 dB |
| RL typical, connector B | 55 dB |
| Grade IEC61755, connector B (better than) | B2 |
| Standard connector B | IEC 61754-2 |
| Cable | Duplex Fig. 8 (B2ca) |
|---|---|
| Cable construction | I-V(ZN)H (4.1 x 2.0mm) |
| Outer sheath material | FRNC/LSZH |
| Outer sheath colour | yellow |
| Impact | IEC 60794-1-21 E4 |
|---|---|
| Repeated bending | IEC 60794-1-21 E6 |
| Housing colour connector A | metal |
|---|---|
| Housing colour connector B | metal |
| Connector cable retention | 100 |
| Minimum bending radius | 50 mm |
| Bending (IEC 60794-1-21 E11, reversible fibre attenuation) | ≤ 0,5 dB |
| Torsion (IEC 60794-1-21 E7, reversible fibre attenuation) | ≤ 0,1 dB |
| Tensile load (IEC 60794-1-21 E1 0,33% reversible fibre elongation) | 200 N |
| Crush resistance (IEC 60794-1-21 E3, reversible fibre attenuation) | ≤ 0,2 dB |
