Server Racks Standard
with front door with tempered glass
This product is not available in your region!

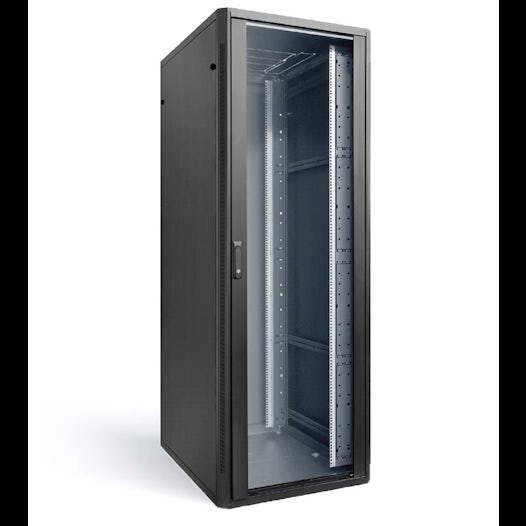

Server Racks Standard, 42U, 800 x 800 mm
Product variants & stock
Download
| Article No. | Stock | Product | Colour | Weight [kg] | GTIN / EAN |
|---|---|---|---|---|---|
| 19557600ZY | Server Rack Standard , 24 U, 1,200 x 600 x 1,000 mm | black | 65 kg | 40393910094312 | |
| 19557900ZY | Server Rack Standard , 24 U, 1,200 x 800 x 1,000 mm | black | 75 kg | 40393910094282 | |
| 19558200ZY | Server Rack Standard , 30 U, 1,500 x 600 x 1,000 mm | black | 75 kg | 40393910094251 | |
| 19558500ZY | Server Rack Standard , 30 U, 1,500 x 800 x 1,000 mm | black | 85 kg | 40393910094220 | |
| 19558800ZY | Server Rack Standard , 37 U, 1,800 x 600 x 1,000 mm | black | 85 kg | 40393910094190 | |
| 19559100ZY | Server Rack Standard , 37 U, 1,800 x 800 x 1,000 mm | black | 95 kg | 40393910094169 | |
| 19559300ZY | Server Rack Standard , 42 U, 2,000 x 600 x 1,000 mm | black | 95 kg | 40393910094145 | |
| 19559400ZY | Server Rack Standard , 42 U, 2,000 x 600 x 1,200 mm | black | 100 kg | 40393910094138 | |
| 19670200ZY | Server Rack Standard , 42 U, 2,000 x 800 x 1,000 mm | black | 105 kg | 40393910093988 | |
| 19670300ZY | Server Rack Standard , 42 U, 2,000 x 800 x 1,200 mm | black | 110 kg | 40393910093971 | |
| 19670600ZY | Server Rack Standard , 46 U, 2,200 x 600 x 1,000 mm | black | 105 kg | 40393910093940 | |
| 19670700ZY | Server Rack Standard , 46 U, 2,200 x 600 x 1,200 mm | black | 110 kg | 40393910093933 | |
| 19671000ZY | Server Rack Standard , 46 U, 2,200 x 800 x 1,000 mm | black | 133 kg | 40393910093902 | |
| 19671100ZY | Server Rack Standard , 46 U, 2,200 x 800 x 1,200 mm | black | 120 kg | 40393910093896 |
Technical specifications
Server rack cabinets are designed to provide reliable solutions with a high price-performance ratio.
| Base frame | made of sheet steel, fully demountable |
|---|---|
| Front door | door with tempered glass, can be opened at 135°, with 2 hinges, lockable handle and key type EK333 |
| Rear door | steel sheet door, can be opened at 135°, with 2 hinges, lockable handle and key type EK333 |
| Side panels | removable blind panels, locks with dedicated keys |
| Top panel | perforated, with 3 removable closing plates for cable access and/or ventilation systems |
| Bottom panel | perforated, with 3 removable closing plates for cable access and/or ventilation systems |
| Mounting profile | depth adjustable 19" racks, front and rear |
| Feet | Set of adjustable feet as standard |
| Earthing | pre-installed flat earthing kit |
| Protection class | IP30 |
| Bayable | no |
| Maximum load [KG] | 1000 kg |
