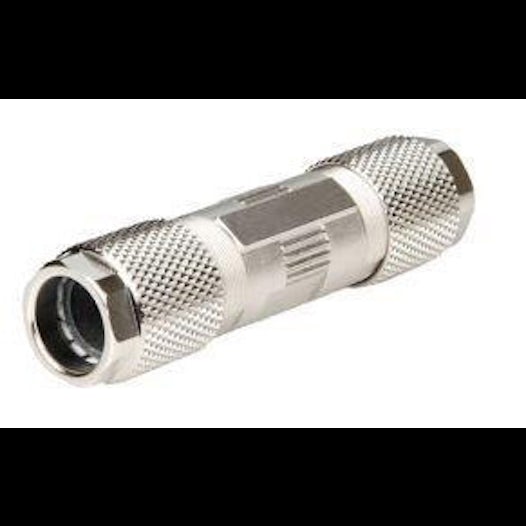

Cable connector Tool-less Industrial
Class FA IP67
Cable connector, Class FA, IP67
Product variants & stock
Download
| Article No. | Stock | Product | Weight [kg] | Packing unit | GTIN / EAN |
|---|---|---|---|---|---|
| 309153 | Cable connector, Class FA, IP67 | 0.04 kg | 1 pc. | 40393910427745 |
Technical specifications
Connection of copper data cables 4 x 2 x AWG26/1 to AWG 22/1 (solid wire) and AWG26/7 to AWG22/7 (flexible wire)
IDC insulation displacement terminals, without special tools
Dimensions: W x L x H: 16.8 x 64.0 x 16.8 mm
Housing: metal, zinc die-cast, shielded
Protection class: IP67 in conjunction with cable diameters from 6.2 to 9.7 mm
Shield connection and strain relief
Cable feed from two sides
IDC insulation displacement terminals, without special tools
Dimensions: W x L x H: 16.8 x 64.0 x 16.8 mm
Housing: metal, zinc die-cast, shielded
Protection class: IP67 in conjunction with cable diameters from 6.2 to 9.7 mm
Shield connection and strain relief
Cable feed from two sides
| For connecting (extending) shielded copper data cables up to category 7A. In conjunction with Cat.7A cables, the class FA requirements of ISO/IEC 11801 are met (from 20 m cable length on both sides of the cable connector). Suitable for POE, POE+, POE++ |
