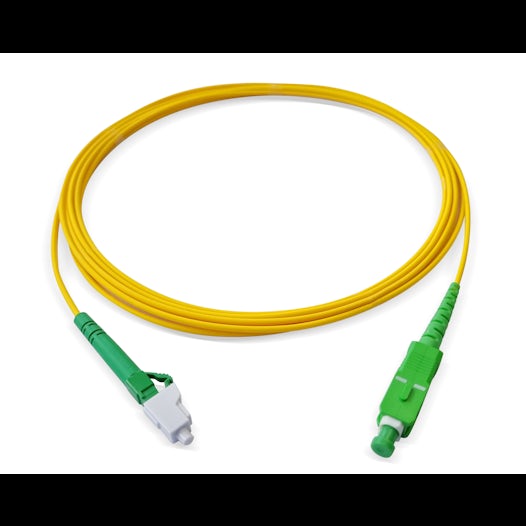

FO simplex patch cord LC/APC - SC/APC
Product variants & stock
Download
| Article No. | Stock | Product | Length (m) | Weight [kg] | Packing unit | GTIN / EAN |
|---|---|---|---|---|---|---|
| 42294500ZY | FO simplex patch cord LC/APC - SC/APC | 1 | 0.02 kg | 1 pc. | 40393910209778 | |
| 42294600ZY | FO simplex patch cord LC/APC - SC/APC | 2 | 0.03 kg | 1 pc. | 40393910209761 | |
| 42294700ZY | FO simplex patch cord LC/APC - SC/APC | 3 | 0.04 kg | 1 pc. | 40393910209754 | |
| 42294800ZY | FO simplex patch cord LC/APC - SC/APC | 4 | 0.06 kg | 1 pc. | 40393910209747 | |
| 42294900ZY | FO simplex patch cord LC/APC - SC/APC | 5 | 0.07 kg | 1 pc. | 40393910209730 | |
| 42295000ZY | FO simplex patch cord LC/APC - SC/APC | 6 | 0.08 kg | 1 pc. | 40393910209723 | |
| 42295100ZY | FO simplex patch cord LC/APC - SC/APC | 7 | 0.1 kg | 1 pc. | 40393910209716 | |
| 42295200ZY | FO simplex patch cord LC/APC - SC/APC | 8 | 0.11 kg | 1 pc. | 40393910209709 | |
| 42295300ZY | FO simplex patch cord LC/APC - SC/APC | 9 | 0.12 kg | 1 pc. | 40393910209693 | |
| 42295400ZY | FO simplex patch cord LC/APC - SC/APC | 10 | 0.13 kg | 1 pc. | 40393910209686 |
Technical specifications
Datwyler offers a broad range of terminated connectors for individual customer needs.
For all simplex patch cords cables with 1.8 mm are used.
For all simplex patch cords cables with 1.8 mm are used.
| Lifetime | 1000 connections with stable attenuation values |
|---|---|
| Reproducibility of the IL | a maximum of +/- 0.1dB |
| Fibre type | E9/125 G.652.D BLO |
| Ferrule material | Zirconia |
| Connector type side A | LC/APC |
| IL maximal, connector A | 0.25 dB |
| IL typical, connector A | 0.12 dB |
| RL minimal, connector A | 65 dB |
| RL typical, connector A | 70 dB |
| Grade IEC61755, connector A (better than) | B2 |
| Standard connector A | IEC 61754-20 |
| Connector type side B | SC/APC |
| IL maximal, connector B | 0.25 dB |
| IL typical, connector B | 0.12 dB |
| RL minimal, connector B | 65 dB |
| RL typical, connector B | 70 dB |
| Grade IEC61755, connector B (better than) | B2 |
| Standard connector B | IEC 61754-4 |
| Cable | Simplex |
|---|---|
| Cable construction | I-V(ZN)H |
| Outer sheath material | FRNC/LSZH |
| Outer sheath colour | yellow |
| Impact | IEC 60794-1-21 E4 |
|---|---|
| Repeated bending | IEC 60794-1-21 E6 |
| Operating temperature | -10 °C - +60 °C |
|---|
| Housing colour connector A | green |
|---|---|
| Housing colour connector B | green |
| Connector cable retention | 70 |
| Minimum bending radius | 50 mm |
| Bending (IEC 60794-1-21 E11, reversible fibre attenuation) | ≤ 0,5 dB |
| Torsion (IEC 60794-1-21 E7, reversible fibre attenuation) | ≤ 0,1 dB |
| Tensile load (IEC 60794-1-21 E1 0,33% reversible fibre elongation) | 200 N |
| Crush resistance (IEC 60794-1-21 E3, reversible fibre attenuation) | ≤ 0,2 dB |
