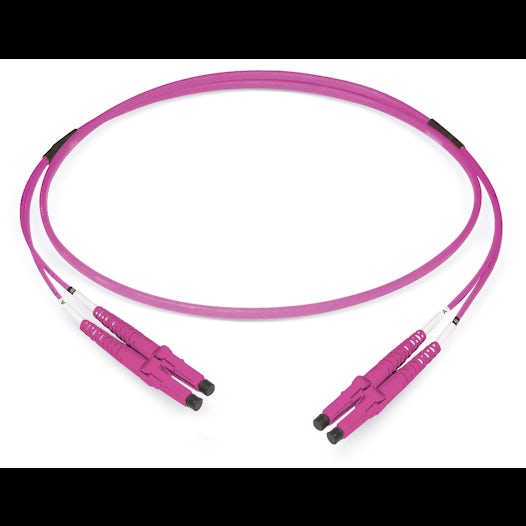

FO duplex patch cord LCD/PC - LCD/PC

G50/125 OM4, Duplex Fig. 0

image similar

Product variants & stock

Article No. Stock ProductLength (m)PolarityWeight [kg]GTIN / EAN
433341
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM41A to B0.03 kg40393910151374
433342
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM42A to B0.05 kg40393910151367
433343
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM43A to B0.07 kg40393910151350
433344
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM44A to B0.09 kg40393910151343
433345
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM45A to B0.11 kg40393910151336
433346
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM46A to B0.13 kg40393910151329
433347
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM47A to B0.15 kg40393910151312
433348
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM48A to B0.17 kg40393910151305
433349
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM49A to B0.19 kg40393910151299
433350
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM410A to B0.21 kg40393910151282
433339
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM41.5A to B0.04 kg40393910151398
433340
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM40.5A to B0.02 kg40393910151381
433352
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM411A to B0.23 kg40393910151268
433354
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM413A to B0.27 kg40393910151244
433355
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM414A to B0.29 kg40393910151237
433357
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM416A to B0.33 kg40393910151213
433358
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM417A to B0.35 kg40393910151206
433359
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM418A to B0.37 kg40393910151190
433360
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM419A to B0.39 kg40393910151183
433361
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM420A to B0.41 kg40393910151176
433362
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM421A to B0.43 kg40393910151169
433363
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM422A to B0.45 kg40393910151152
433364
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM423A to B0.47 kg40393910151145
433365
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM424A to B0.49 kg40393910151138
433366
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM425A to B0.51 kg40393910151121
433367
FO duplex patch cord LCD/PC - LCD/PC, G50/125 OM412A to B0.25 kg40393910151114

Technical specifications

Datwyler offers a broad range of terminated connectors for individual customer needs.
Connector cable retention 100
Tensile load (IEC 60794-1-21 E1 0,33% reversible fibre elongation) 200 N
Bending (IEC 60794-1-21 E11, reversible fibre attenuation) ≤ 0,5 dB
Crush resistance (IEC 60794-1-21 E3, reversible fibre attenuation) ≤ 0,2 dB
Torsion (IEC 60794-1-21 E7, reversible fibre attenuation) ≤ 0,1 dB
Minimum bending radius 50 mm
Reproducibility of the IL a maximum of +/- 0.1dB
Lifetime 1000 connections with stable attenuation values
Fibre type G50/125 OM4
Ferrule material Zirconia
Connector type side A LCD/PC
IL maximal, connector A 0.25 dB
IL typical, connector A 0.15 dB
RL minimal, connector A 30 dB
RL typical, connector A 35 dB
Grade IEC61755, connector A (better than) Bm2m
Standard connector A IEC 61754-20
Connector type side B LCD/PC
IL maximal, connector B 0.25 dB
IL typical, connector B 0.15 dB
RL minimal, connector B 30 dB
RL typical, connector B 35 dB
Grade IEC61755, connector B (better than) Bm2m
Standard connector B IEC 61754-20
Cable Duplex Fig. 0
Cable construction I-V(ZN)HH (5.0x3.0mm)
Outer sheath material LSZH
Outer sheath colour heather violet
Impact IEC 60794-1-21 E4
Repeated bending IEC 60794-1-21 E6
Operating temperature -10 °C - +60 °C
