Product variants & stock

Article No. Stock ProductColourWeight [kg]Packing unitGTIN / EAN

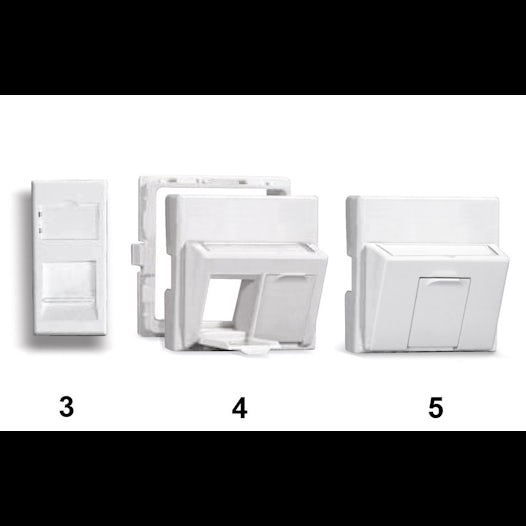

Keystone Bezel 1 Port 45 x 45 mm straightpure white0.05 kg1 pc.40393910165289
Keystone Bezel 1 Port slim 45 x 22.5 mm straightpure white0.01 kg1 pc.40393910165272
Keystone Bezel 2 Ports 45 x 45 mm straightpure white0.06 kg1 pc.40393910165265
Keystone Bezel 2 Ports, 45 x 45 mm angledpure white0.02 kg1 pc.40393910165258
Keystone Bezel 1 Port, 45 x 45 mm angledpure white0.01 kg1 pc.40393910165296
Faceplate French Standard for Bezel 45 x 45 mmpure white0.1 kg1 pc.40393910165241

Technical specifications

Faceplate for the installation in Module 45 Systems, e.g. for standard Legrand inserts (bezels), with straight outlet. Compatible with all Datwyler Keystone modules. All Datwyler Keystone modules (shielded/unshielded) are easily fitted into the inserts. Made of flame retardant material. With integrated dust shutters and labelling fields. Delivery without modules.
Suitable for the following Datwyler modules:
- PS-GG45 7A 4P shielded
- RJ45 module KS-T Plus 1/8 Cat.6A shielded
- RJ45 module KS-TC Plus Cat.6A (IEC), shielded
- RJ45 module MS-C6A 1/8 Cat.6A 180°-K shielded
- RJ45 module KU Plus 1/8 Cat.6A unshielded
- RJ45 module KS-TS 1/8 Cat. 6/EA shielded
