KS_CC201_Cat5e_and_Cat6_RJ45modules_2

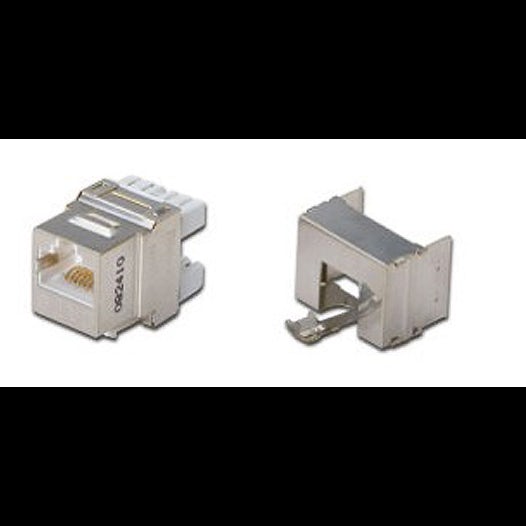

KS CC201 Cat.5e and Cat.6

RJ45 modules, shielded, 180°

CC201 series RJ45 modules, shielded, Cat.5e and Cat.6

07_Modular

Produktvarianten & Lagerbestand

Artikel-Nr. Lagerbestand Produkt Nr.ProduktFarbeKategorieGewicht [kg]VerpackungseinheitGTIN / EAN
418051
CC201-KS51KS CC201 Cat.5e module, shielded, 180°metalCat.5e0.02 kg10 Stk.40393910165159
418050
CC201-KS60KS CC201 Cat.6 module, shielded, 180°metalCat.60.02 kg10 Stk.40393910165166

Technische Daten

Housing made of high impact resistant, flame retardant materials, UL94V-0 rated.
Solid zinc alloy connector housing with snap-in.
The metal shielding ensures a fully shielded environment.
Wire guides support termination in accordance with the color code T568-A and B.
RJ45 modules in accordance with IEC 60603.
Fit in all Datwyler Keystone patch panels and faceplates.
For the transmission of digital and analogue voice-, video- and data signals.
Suitable for all Class D/Class E applications respectively in accordance with ISO/IEC 11801, EN 50173-1 and TIA/EIA 568-C.2.
Verbindungs Typ IDC-Schneidklemmen
Cu-Leiter Draht 0.50 mm (AWG 26) - 0.64 mm (AWG 22)
Cu-Leiter Litze AWG26/7 - AWG26/8
Durchmesser über isolation 0.70 mm - 1.40 mm
Installationstemperatur -10 °C - +60 °C
Lagertemperatur -40 °C - +70 °C
Betriebstemperatur -20 °C - +60 °C
Schirmung geschirmt
Verkabelungsnormen TIA-568-C.2, GB 50311, ISO/IEC 11801-1
Kat./Klasse Cat.5e/ Klasse D
Steckerstandard IEC 60603-7-5
